Marmon MVG750

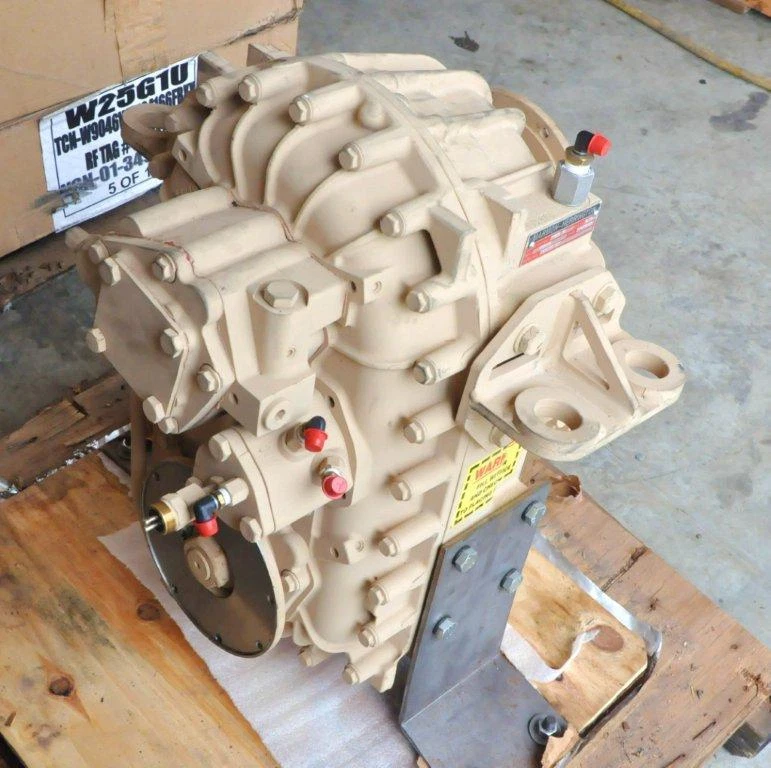

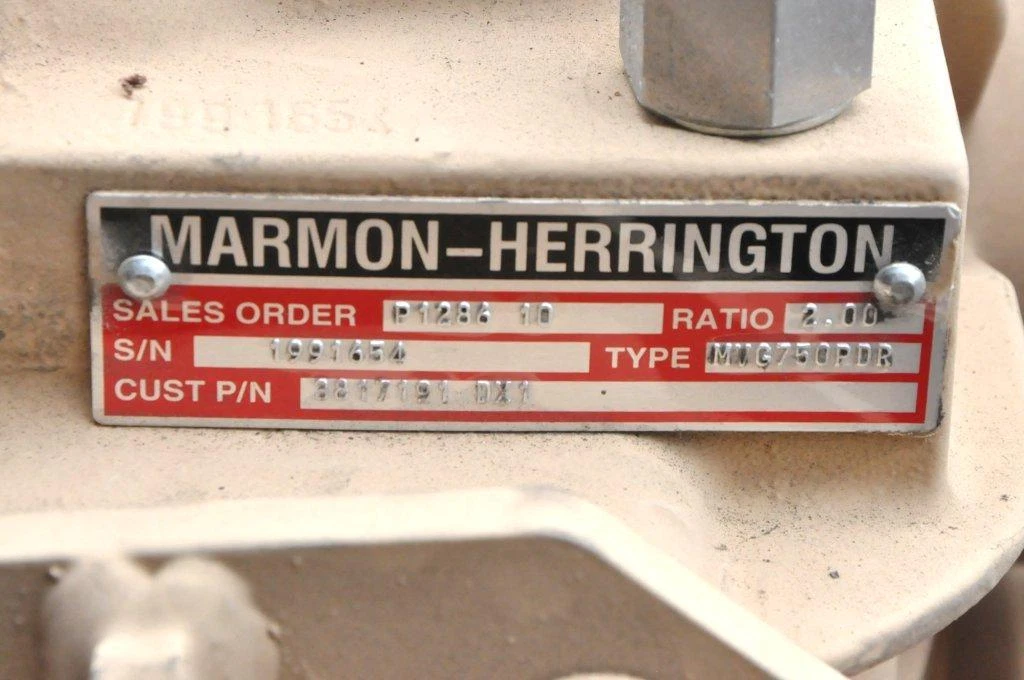

Brand: Marmon-Herrington Type: Transfer Case Series: MVG750PDR T20 Series Part Number: 3855784 NSN: 2520-01-577-5662 System Type: Heavy-duty 3-shaft transfer case Housing Material: Aluminum Input Torque Rating: 7,400 ft-lbs Dry Weight: 254 lb (275 lb with differential) Gear Ratios High Range: 1:1 Low Range: 2.00:1 Features Helical constant-mesh gears for reduced noise Integral air shift controls (front axle engage, high/neutral/low range, PTO engage) Built-in weatherproof switch system for operational indicators Multiple companion flange options for easy drivetrain compatibility Compact design with improved ground clearance Electronic speedometer sensor included Roller bearing-supported shafts for durability Designed to reduce drivetrain binding during turning under load Direct bolt-in replacement for MVG750R model Applications Suitable for: Heavy-duty commercial 4x4 trucks Agricultural machinery Mining and industrial vehicles Military applications Specialized vehicles (e.g., spreaders, off-road builds) Additional Notes Shipped dry (requires 90W synthetic gear oil before use) Designed for high-load, off-road, and severe-duty applications Reported cost reference: ~$23,428 per unit
